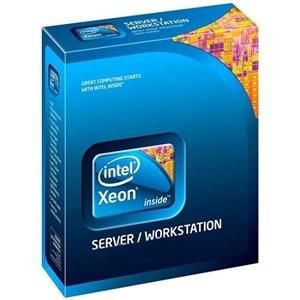

Dell Intel Xeon Processor E5-2650 v3 (10C, 2.3GHz, Turbo, HT, 25M, 105W)
The Intel Xeon® E5-2650 v3 2.3GHz Ten Core Processor enhances the performance and the speed of your system. Additionally, the Virtualization Technology enables migration of more environments. It supports enhanced SpeedStep® technology that allows tradeoffs to be made between performance and power consumption. Its Thermal Monitoring Technologies protect the processor package and the system from thermal failure through several thermal management features. The VT-x with Extended Page Tables (EPT) also known as Second Level Address Translation (SLAT), provides acceleration for memory intensive virtualized applications. Packed with more features, the Xeon E5-2650 v3 2.3GHz Ten Core Processor is the ideal choice for virtually all of your data demanding or standard enterprise infrastructure applications.
Availability: In stock
The Intel Xeon® E5-2650 v3 2.3GHz Ten Core Processor enhances the performance and the speed of your system. Additionally, the Virtualization Technology enables migration of more environments. It supports enhanced SpeedStep® technology that allows tradeoffs to be made between performance and power consumption. Its Thermal Monitoring Technologies protect the processor package and the system from thermal failure through several thermal management features. The VT-x with Extended Page Tables (EPT) also known as Second Level Address Translation (SLAT), provides acceleration for memory intensive virtualized applications. Packed with more features, the Xeon E5-2650 v3 2.3GHz Ten Core Processor is the ideal choice for virtually all of your data demanding or standard enterprise infrastructure applications.
Specifications
| Commodity Classification Automated Tracking System (CCATS) | G077159 |
| CPU configuration (max) | 2 |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Export Control Classification Number (ECCN) | 5A992C |
| Idle States | Yes |
| Market segment | Server |
| Maximum number of PCI Express lanes | 40 |
| PCI Express CEM revision | 3.0 |
| PCI Express slots version | 3.0 |
| Physical Address Extension (PAE) | 46 bit |
| Scalability | 2S |
| Supported instruction sets | AVX 2.0 |
| Thermal Monitoring Technologies | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card | No |
| On-board graphics card model | Not available |
| ECC | Yes |
| Maximum internal memory supported by processor | 768 GB |
| Memory channels | Quad-channel |
| Memory clock speeds supported by processor | 1600, 1866, 2133 |
| Memory types supported by processor | DDR4-SDRAM |
| Tcase | 78,9 °C |
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
| Maximum internal memory | 786432 MB |
| Box | No |
| Bus type | QPI |
| Component for | Server/workstation |
| Cooler included | No |
| L3 cache speed | 2,3 GHz |
| Memory bandwidth supported by processor (max) | 68 GB/s |
| Number of QPI links | 2 |
| Package type | Box, Tray |
| Processor ARK ID | 81705 |
| Processor base frequency | 2,3 GHz |
| Processor boost frequency | 3 GHz |
| Processor cache | 25 MB |
| Processor cache type | Smart Cache |
| Processor code | SR1YA |
| Processor codename | Haswell |
| Processor lithography | 22 nm |
| Processor manufacturer | Intel |
| Processor model | E5-2650V3 |
| Processor operating modes | 64-bit |
| Processor series | Intel Xeon E5-2600 v3 |
| Processor socket | LGA 2011-v3 |
| Processor threads | 20 |
| Stepping | M1 |
| System bus rate | 9,6 GT/s |
| Thermal Design Power (TDP) | 105 W |
| WIDE Voltage Range | 0.65 - 1.3 V |
| Conflict-Free processor | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology version | 0 |
| Intel Secure Key Technology version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel TSX-IN | No |
| Intel TSX-NI version | 0 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Intel® Smart Cache | Yes |
| Intel® Transactional Synchronization Extensions | No |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Turbo Boost Technology 2.0 frequency | 3 GHz |
| Intel® vPro™ Platform Eligibility | Yes |
| Bus bandwidth | 9,6 |
| Bus speed | 9.6 GT/s |
| Bus type units | GT/s |
| Last change | 63903513 |
| Launch date | Q3'14 |
| Maximum memory | 768 GB |
| Processor brand name | Intel Xeon v2 |
| Product family | Intel Xeon Processor E5 v3 Family |
| Product type | Processor |
| Status | Discontinued |
| Supported memory types | DDR4-SDRAM |
| Brand Name | Dell |
| Warranty | 1 year |
| Processor package size | 52.5mm x 45mm mm |
