Integrated Raid Module
€28,95
Integrated Raid Module
Availability: In stock
Secure payment · Fast delivery
EAN:5032037060455Categories:, , Brand:
Integrated Raid Module
Specifications
Specifications
| Operational conditions | Operating temperature (T-T) 0 - 65 °C |
| Operating temperature (T-T) | 0 - 65 °C |
| Additional features | Support for optional Maintenance Free Backup Unit and Premium Feature upgrade keys. |
| Internal ports | 4 |
| Market segment | Server |
| Other features | Support for Premium Feature Options |
| RAID ARK ID | 82030 |
| Supported devices | SAS/SATA |
| Packaging content | (1) Intel Integrated RAID Module RMS3CC040, (4) standoffs, and (4) standoff locking pins |
| Commodity Classification Automated Tracking System (CCATS) | NA |
| Compatible battery backup options | AXXRMFBU5 |
| Connector orientation | Side |
| Data transfer rate | 12288 Mbit/s |
| Export Control Classification Number (ECCN) | 4A994B |
| Form factor | Storage Connector Module |
| Internal memory | 1024 MB |
| Internal memory type | DDR3 |
| JBOD function | No |
| Memory clock speed | 1866 MHz |
| Number of devices supported | 128 |
| RAID levels | 0, 1, 10, 5, 50, 6, 60 |
| Sustained data transfer rate (native) | 12288 MB/s |
| Host interface | PCI Express x8 |
| Internal SAS ports | 4 |
| PCI Card form factor | Full-height (low-profile) |
| PCI Express slots version | 3.0 |
| Supported storage drive interfaces | SAS, Serial ATA |
| Processor | Processor family LSI Processor model LSISAS3108 |
| Processor family LSI | Processor model LSISAS3108 |
| Processor family | LSI |
| Processor model | LSISAS3108 |
| Compatible operating systems | Windows, Linux, VMware |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Yes |
| Born on date | Q3'14 |
| Expected discontinuance date | Q2'23 |
| Extended warranty available for purchase (select countries) | Yes |
| Last change | 63903513 |
| Last order date | 2019-08-03 05:00:37 |
| Launch date | Q3'14 |
| PCI Express host interface | PCIe x8 Gen3 |

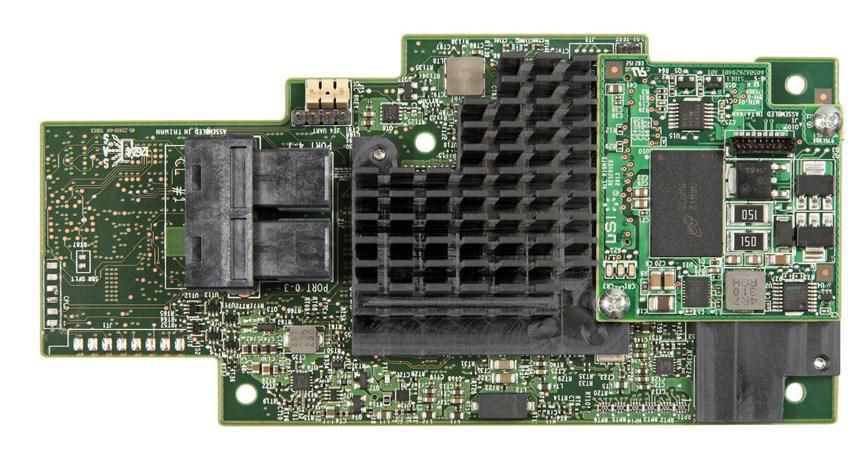

| Product name | Intel Integrated RAID Module RMS3CC040 |
| Product type | RAID |
| RAID connector orientation | Side |
| RAID keying | SIOM |
| Status | Launched |
| Target market | Mainstream |
| Vendor information | Brand Name Intel Warranty 1 År |
| Brand Name Intel | Warranty 1 År |
| Brand Name | Intel |
| Warranty | 1 År |
| Hovedkategori | Server, Computer & Printer Parts |
| Underkategori | RAID Controllers |
