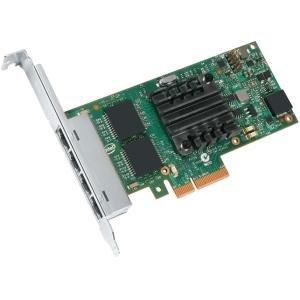

Intel Intel Ethernet Server Adapter I350T4V2
€168,29

iWARP/RDMA iWARP delivers converged, low-latency fabric services to data centers through Remote Direct Memory Access (RDMA) over Ethernet. The key iWARP components that deliver low-latency are Kernel Bypass, Direct Data Placement, and Transport Acceleration. PCI-SIG* SR-IOV Capable Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices. Intel® Ethernet Power Management Intel® Ethernet Power Management Technology provides solutions to common power management approaches by reducing idle power, reducing capacity and power as a function of demand, operating at maximum energy efficiency whenever possible, and enabling functionality only when needed. Flexible Port Partitioning Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to

Availability: In stock
-
+
Secure payment · Fast delivery
EAN:4260610450602Categories:COMPUTER SCIENCE, Computer Components, Miscellaneous AccessoriesBrand:

iWARP/RDMA PCI-SIG* SR-IOV Capable Intel® Ethernet Power Management Flexible Port Partitioning Virtual Machine Device Queues (VMDq) iWARP/RDMA iWARP delivers converged, low-latency fabric services to data centers through Remote Direct Memory Access (RDMA) over Ethernet. The key iWARP components that deliver low-latency are Kernel Bypass, Direct Data Placement, and Transport Acceleration. PCI-SIG* SR-IOV Capable Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices. Intel® Ethernet Power Management Intel® Ethernet Power Management Technology provides solutions to common power management approaches by reducing idle power, reducing capacity and power as a function of demand, operating at maximum energy efficiency whenever possible, and enabling functionality only when needed. Flexible Port Partitioning Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth. Virtual Machine Device Queues (VMDq) Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance

Specifications

Specifications
ChipsetIntel® I350
Component forServer
InternalYes
Cabling technology10/100/1000BaseT(X)
Ethernet LANYes
Ethernet LAN data rates10, 100, 1000
Full duplexYes
LAN controllerIntel® I350
Maximum data transfer rate1000 Mbit/s
Maximum operating distance100 m
Networking standardsIEEE 802.1as, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Supported network protocolsTCP, UDP, IP
Operating temperature (T-T)0 - 55 °C
Storage relative humidity (H-H)35 - 90 %
Storage temperature (T-T)-40 - 70 °C
Bracket heightLow-Profile (LP) / Full-Height (FH)
Cable typeCat 5 up to 100m
Cabling typeCat 5 up to 100m
Commodity Classification Automated Tracking System (CCATS)THAT
Controller typeIntel I350
Embedded options availableNo
Ethernet adapter ARK ID84805
Export Control Classification Number (ECCN)5A991
Intel Ethernet Power ManagementYes
Intel Flexible Port PartitioningYes
Intel Virtual Machine Device Queues (VMDq)Yes
Intel Virtualization Technology for Connectivity (VT-c)Yes
Intelligent OffloadsYes
Interface typePCIe v2.1 (5.0 GT/s)
WARP/RDMANo
Last change63903513
Launch dateQ3'14
Low halogen options availableNo
Market segmentServer
Network interface card cable mediumCopper
Network interface card typeServer
On-chip QoS and Traffic ManagementYes
PCI-SIG* SR-IOV CapableYes
Processor familyGigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE)
Product brief URLhttp://www.intel.com/content/www/us/en/ethernet-controllers/ethernet-i350-server-adapter-brief.html?wapkw=i350
Product codenamePowerville
Product familyIntel Gigabit server adapter
Product seriesIntel® I350
Product typeNetwork Interface Card
Speed & slot width5.0 GT/s, x4 Lane
StatusLaunched
Storage Over EthernetiSCSI, NFS
Storage-over-ethernetYes
Thermal Design Power (TDP)5 W
Connectivity technologyWired
Ethernet LAN (RJ-45) ports4
Host interfacePCI Express
InterfaceEthernet
PCI Card form factorFull-height (low-profile)
PCI version2.1
Power consumption (typical)5 W
Compatible operating systemshttps://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html
Brand NameIntel
Warranty1 year
