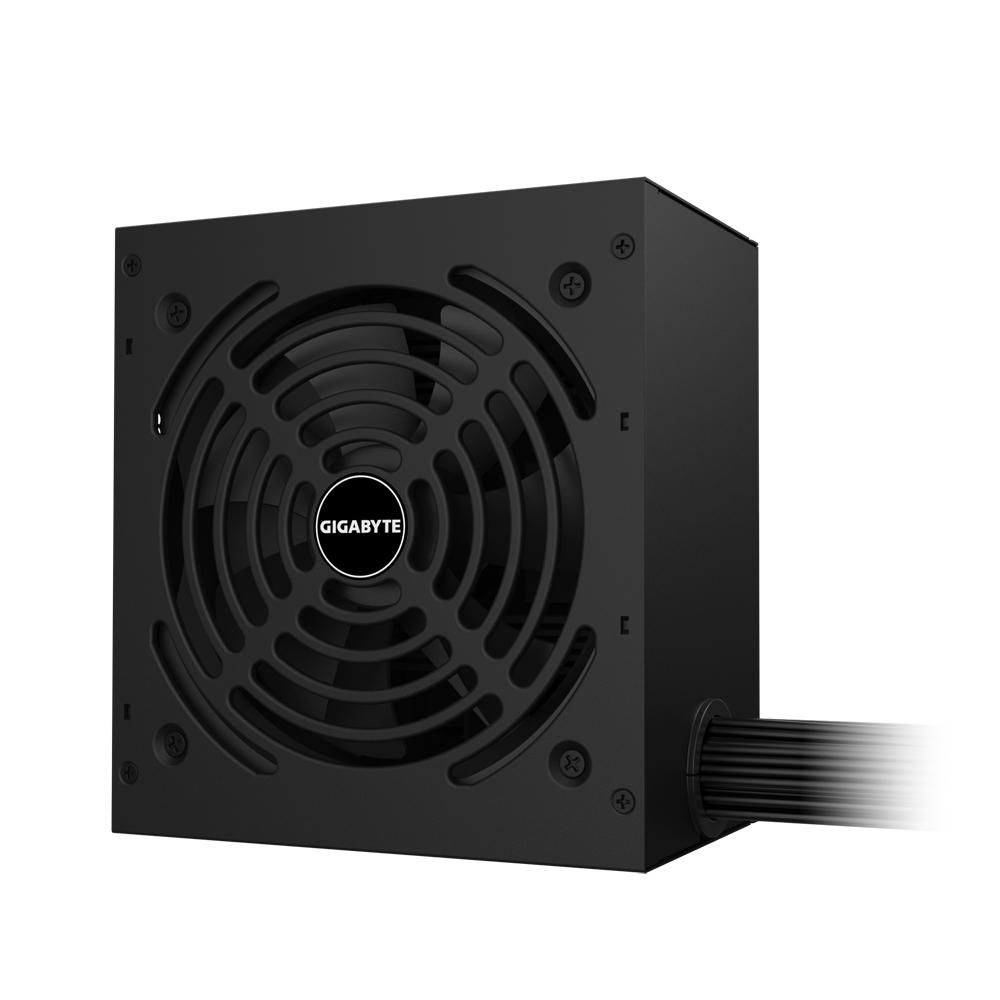

GIGABYTE P650G PCIE 5.1 Power Supply - PCIe 5.1, 80 PLUS Silver, 120mm Fan, ATX 3.1 compatible, EU Plug
GIGABYTE P650G PCIE 5.1 Power Supply - PCIe 5.1, 80 PLUS Silver, 120mm Fan, ATX 3.1 compatible, EU Plug, 650 W, 100 - 240 V, 50/60 Hz, 10 - 6 A, 10 A, 6 A
Availability: In stock
GIGABYTE P650G PCIE 5.1 Power Supply - PCIe 5.1, 80 PLUS Silver, 120mm Fan, ATX 3.1 compatible, EU Plug. Total power: 650 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 120,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 140 mm, Depth: 150 mm, Height: 86 mm
Specifications
| Total power | 650 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 10 - 6 A |
| Maximum input current (@110V) | 10 A |
| Maximum input current (@220V) | 6 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 90 W |
| Combined power (+12V) | 650 W |
| Combined power (+5V) | 650 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 18 A |
| Max output current (+12V) | 54.2 A |
| Max output current (+5V) | 18 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 18 A |
| Power Good signal delay range | 100 - 150 ms |
| Power protection features | Over power, Overcharge, Short circuit, Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 6 |
| SATA power cable length | 120,500 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Peripheral (Molex) power cable length | 150 mm |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power cable length | 50 cm |
| CPU P4 connector (4-pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 60 cm |
| ATX power connector (20+4 pin) | Yes |
| Floppy disk drive connector | Yes |
| Cabling type | Non-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| Bearing technology | HYB |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | Yes |
| Width | 140 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 1.76 kg |
| Package width | 260 mm |
| Package depth | 110 mm |
| Package height | 180 mm |
| Package weight | 1.92 kg |
| Package type | Box |
| Warranty period | 5 year(s) |
