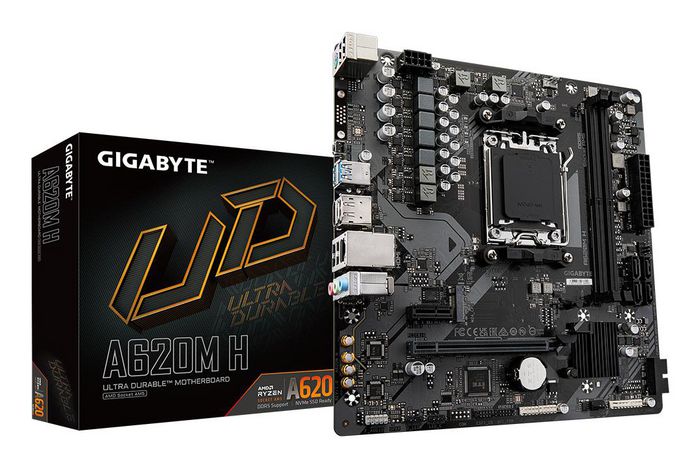

Gigabyte A620M H Motherboard - Supports AMD Ryzen 8000 CPUs, 5+2+2 Phases Digital VRM, up to 7200MHz DDR5 (OC), 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1
5+2+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs GIGABYTE UD series motherboards use a 5+2+2 phases digital PWM + Low RDS(on) MOSFETs design to support AMD's new generation CPU by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.
Availability: In stock
5+2+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs 5+2+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs GIGABYTE UD series motherboards use a 5+2+2 phases digital PWM + Low RDS(on) MOSFETs design to support AMD's new generation CPU by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.
Specifications
| Battery weight | 3 g |
| Number of battery cells | 1 |
| ACPI version | 5.0 |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Number of M.2 (M) slots | 1 |
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard chipset | AMD A620 |
| Motherboard chipset family | AMD |
| Motherboard form factor | micro ATX |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Product colour | Brown |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| DirectX version | 12.0 |
| HDCP | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| Parallel processing technology support | Not supported |
| 12V power connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Number of SATA III connectors | 4 |
| RGB LED pin header | Yes |
| Total number of SATA connectors | 4 |
| TPM connector | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Products per shipping (inner) case | 1 pc(s) |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 96 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Non-ECC | Yes |
| Number of memory slots | 2 |
| Supported memory clock speed (max) | 7200 MHz |
| Supported memory clock speeds | 4400, 4800, 5200, 5600, 6000, 6200, 6400, 6800, 7200 |
| Supported memory module capacities | 12GB, 16GB, 1GB, 2GB, 32GB, 48GB, 4GB, 8GB |
| Supported memory types | DDR5-SDRAM |
| Unbuffered memory | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Batteries included | Yes |
| Bundled software | LAN bandwidth management software, Norton Internet Security |
| Cables included | SATA |
| Compatible processor series | AMD Ryzen 7000 Series |
| Maximum internal memory supported by processor | 96 GB |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Supported processor sockets | Socket AM5 |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| DVI-D ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 3 |
| Microphone in | Yes |
| PS/2 ports quantity | 1 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB connector type | USB Type-A, USB Type-C |
| VGA (D-Sub) ports quantity | 0 |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 5 |
| RAID levels | 0, 1, 10 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| Warranty period | 3 year(s) |
| Brand Name | Gigabyte |
| Warranty | 1 year |
