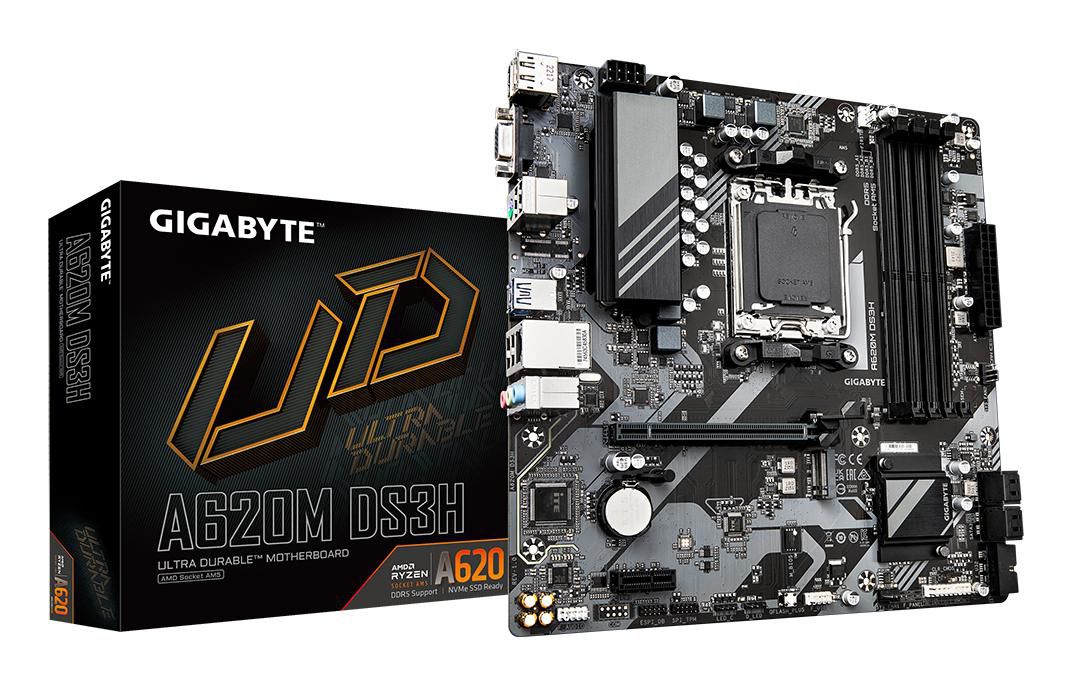

GIGABYTE A620M DS3H Motherboard - Supports AMD Ryzen 8000 CPUs, 5+2+2 Phases Digital VRM, up to 7600MHz DDR5 (OC), 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1
GIGABYTE A620M DS3H Motherboard - Supports AMD Ryzen 8000 CPUs, 5+2+2 Phases Digital VRM, up to 7600MHz DDR5 (OC), 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1, AMD, Socket AM5, AMD Ryzen 7000 Series, Socket AM5, 192 GB, DDR5-SDRAM
Availability: In stock
GIGABYTE A620M DS3H Motherboard - Supports AMD Ryzen 8000 CPUs, 5+2+2 Phases Digital VRM, up to 7600MHz DDR5 (OC), 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. USB connector type: USB Type-A, USB Type-C
Specifications
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series |
| Supported processor sockets | Socket AM5 |
| Maximum internal memory supported by processor | 192 GB |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 4800,5200,5600,6000,6200,6400,6800,7000,7200,7600 MHz |
| Supported memory clock speed (max) | 7600 MHz |
| Maximum internal memory | 192 GB |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB |
| Unbuffered memory | Yes |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 1 |
| Number of storage drives supported | 4 |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Total number of SATA connectors | 4 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| TPM connector | Yes |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Headphone outputs | 3 |
| Microphone in | Yes |
| USB connector type | USB Type-A, USB Type-C |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | No |
| Motherboard chipset | AMD A620 |
| Audio output channels | 7.1 channels |
| Product colour | Brown |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| Number of M.2 (M) slots | 1 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Package width | 265 mm |
| Package depth | 265 mm |
| Package height | 54 mm |
| Package weight | 1.07 kg |
| Width | 244 mm |
| Depth | 244 mm |
| Height | 35 mm |
| Cables included | SATA |
| Batteries included | Yes |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Warranty period | 3 year(s) |
