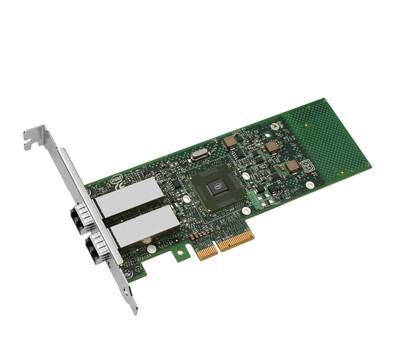

Intel Intel Gigabit EF Dual Port Server Adapter
The Intel® Gigabit ET and EF Multi-Port Server Adapters are Intel's third generation of PCIe GbE network adapters. Built with the Intel® 82576 Gigabit Ethernet Controller, these new adapters showcase the next evolution in GbE networking features for the enterprise network and data center. These features include support for multi-core processors and optimization for server virtualization. Features and benefits: - Industry-leading, energy-efficient design for next-generation Gigabit performance and multi-core processors. - Enables higher bandwidth and throughput from standard and low-profile PCI Express slots and servers. - Provides centralized storage area network (SAN) management at a lower cost than competing iSCSI solutions. - Increases performance on multi-processor systems by efficiently balancing network loads across CPU cores when used with Receive-Side Scaling from Microsoft or Scalable I/O on Linux. - Allows each port to operate without interfering with the other - Enables dual
Availability: In stock
Features and benefits: The Intel® Gigabit ET and EF Multi-Port Server Adapters are Intel's third generation of PCIe GbE network adapters. Built with the Intel® 82576 Gigabit Ethernet Controller, these new adapters showcase the next evolution in GbE networking features for the enterprise network and data center. These features include support for multi-core processors and optimization for server virtualization. Features and benefits: - Industry-leading, energy-efficient design for next-generation Gigabit performance and multi-core processors. - Enables higher bandwidth and throughput from standard and low-profile PCI Express slots and servers. - Provides centralized storage area network (SAN) management at a lower cost than competing iSCSI solutions. - Increases performance on multi-processor systems by efficiently balancing network loads across CPU cores when used with Receive-Side Scaling from Microsoft or Scalable I/O on Linux. - Allows each port to operate without interfering with the other - Enables dual- or quad-port operation in almost any PCI Express server slot, except x1 slots. - Enables widespread deployment. - Compliant with the European Union directive 2002/95/EC to reduce the use of hazardous materials. - Provides point-and-click management of individual adapters, advanced adapter features, connection teaming, and virtual local area network (VLAN) configuration.
Specifications
| Certification | FCC B, UL, CE, VCCI, BSMI, CTICK, MIC |
| Internal | Yes |
| Ethernet LAN | Yes |
| Fiber mode structure | Multi-mode |
| LAN controller | Intel® 82576 |
| Maximum data transfer rate | 1000 Mbit/s |
| Maximum operating distance | 550 m |
| Supported network protocols | IEEE 1588 PTC |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Born on date | Q4'08 |
| Bracket height | Low-Profile (LP) / Full-Height (FH) |
| Cable type | MMF 50um up to 550m; MMF 62.5um up to 275m |
| Cabling type | MMF 50um up to 550m; MMF 62.5um up to 275m |
| Commodity Classification Automated Tracking System (CCATS) | G135872 |
| Controller type | Intel 82576 |
| Ethernet adapter ARK ID | 50396 |
| Export Control Classification Number (ECCN) | 5A992C |
| Halogen-free | No |
| Intel Ethernet Power Management | No |
| Intel Flexible Port Partitioning | Yes |
| Intel Virtual Machine Device Queues (VMDq) | Yes |
| Intel Virtualization Technology for Connectivity (VT-c) | Yes |
| Intelligent Offloads | Yes |
| Interface type | PCIe v2.0 (2.5 GT/s) |
| Last change | 63903513 |
| Launch date | Q4'08 |
| Low halogen options available | No |
| Market segment | Server |
| Message signal interrupt | Yes |
| Network interface card cable medium | Fiber |
| Network interface card security | IPSec |
| Network interface card type | Server |
| On-chip QoS and Traffic Management | Yes |
| PCI Bus | 2.0 (2.5 GT/s) |
| PCI-SIG* SR-IOV Capable | Yes |
| Ports quantity | 2 |
| Processor family | Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE) |
| Product brief URL | http://www.intel.com/Assets/PDF/prodbrief/320116.pdf |
| Product codename | Lunaville |
| Product family | Intel Gigabit server adapter |
| Product name | Intel Gigabit EF Dual Port Server Adapter |
| Product series | Intel Gigabit EF |
| Product type | Network Interface Card |
| Slot type | x4 / x8 / x16 |
| Speed & slot width | 2.5 GT/s, x4 Lane |
| Status | Discontinued |
| Storage Over Ethernet | iSCSI, NFS |
| Supported data transfer rates | 10/100/1000 |
| Thermal Design Power (TDP) | 2,2 W |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 2 |
| Host interface | PCI Express |
| PCI version | 2.0 |
| Power consumption (typical) | 2,2 W |
| Compatible operating systems | Windows Vista SP1/Unified Storage Solution 2003/ Server 2003 SP2+, Linux, FreeBSD 7.0, UEFI 1.1, VMware ESX 3.x |
| Brand Name | Intel |
| Warranty | 1 year |
