Lenovo ThinkSystem 10Gb 2-port Base-T LOM

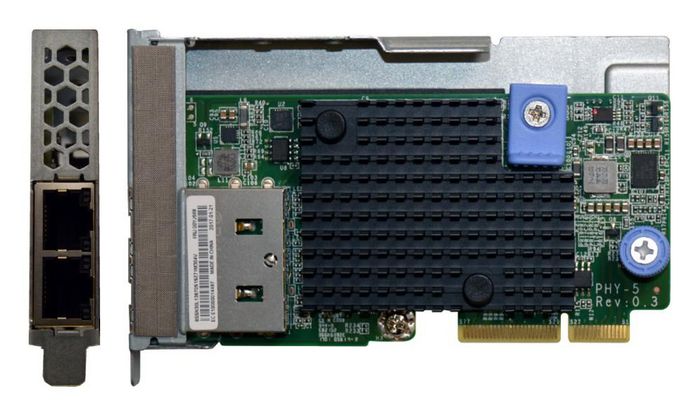

The Intel Ethernet Connection X722 is a network controller embedded into the Intel C624 "Lewisburg" PCH chipset of Lenovo ThinkSystem servers. The controller connects to available 10 GbE and 1 Gigabit Ethernet LAN-on-motherboard (LOM) adapter cards and onboard connectors to provide a comprehensive 1 GbE / 10 GbE networking solution for ThinkSystem customers. ThinkSystem servers support either 10 Gb Ethernet copper or optical connections, or Gigabit Ethernet connections depending on the server model. The following figure shows the ThinkSystem 10Gb 4-port SFP+ LOM adapter which provides four SFP+ cages for optical or direct-attach copper (DAC) connectivity.
Availability: In stock
The Intel Ethernet Connection X722 is a network controller embedded into the Intel C624 "Lewisburg" PCH chipset of Lenovo ThinkSystem servers. The controller connects to available 10 GbE and 1 Gigabit Ethernet LAN-on-motherboard (LOM) adapter cards and onboard connectors to provide a comprehensive 1 GbE / 10 GbE networking solution for ThinkSystem customers. ThinkSystem servers support either 10 Gb Ethernet copper or optical connections, or Gigabit Ethernet connections depending on the server model. The following figure shows the ThinkSystem 10Gb 4-port SFP+ LOM adapter which provides four SFP+ cages for optical or direct-attach copper (DAC) connectivity.
Specifications
| Certification | Australian EMC Framework (RCM), EU (CE Mark), FCC Rules, Part 15, Class A, Industry Canada, ICES-003, Class A, Japan VCCI, Class A, Korea KC-RRA, Class A, UL recognized to UL60950-1 2nd Edition |
| Chipset | Intel® C624 |
| Compatible products | SR630, SR650, SR850, SR860, SR950 |
| Internal | Yes |
| Product colour | Green, Metallic |
| RoHS compliance | Yes |
| Cabling technology | 10GBase-T |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10000 Mbit/s |
| Jumbo frames support | Yes |
| Maximum data transfer rate | 10000 Mbit/s |
| Networking standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qbg, IEEE 802.3ad, IEEE 802.3x |
| Quality of Service (QoS) support | Yes |
| Security algorithms | SNMP |
| VLAN tagging | Yes |
| Flow control support | Yes |
| Intel Data Direct I/O Technology | Yes |
| Intel Virtual Machine Device Queues (VMDq) | Yes |
| Jumbo frames | 9728 |
| Number of VLANs | 4096 |
| PCI-SIG* SR-IOV Capable | Yes |
| Receive Side Scaling (RSS) | Yes |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 2 |
| Host interface | PCI Express |
| Interface | Ethernet |
| Other operating systems supported | VMware vSphere ESXi |
| Server operating systems supported | SUSE Linux Enterprise Server 11, SUSE Linux Enterprise Server 12, Windows Server 2012 R2, Windows Server 2012 R2 x64, Windows Server 2016 |
| Compliance certificates | RoHS |
| Sustainability certificates | RoHS |
| Brand Name | Lenovo |
| Warranty | 1 year |
