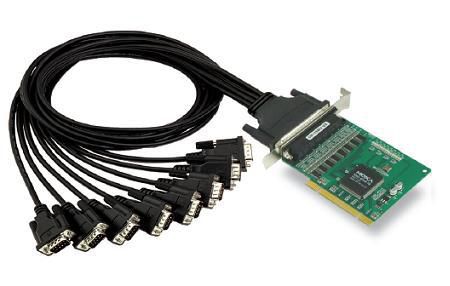

Moxa 8-port RS-232 Universal PCI serial board
The CP-168U is a smart, 8-port universal PCI board designed for POS and ATM applications. It is a top choice of industrial automation engineers and system integrators, and supports many different operating systems, including Windows, Linux, and even Unix. In addition, each of the board's 8 RS-232 serial ports supports a super fast 921.6 Kbps baudrate. The CP-168U provides full modem control signals to ensure compatibility with a wide range of serial peripherals, and works with both 3.3V and 5V PCI buses, allowing the board to be installed in virtually any available PC server. - Over 700 Kbps data throughput for top performance - 921.6 Kbps maximum baudrate for super fast data transmission - 128-byte FIFO and on-chip H/W, S/W flow control - Choose from a wide range of connection cables and boxes - Compatible with 3.3/5V PCI and PCI-X - Drivers provided for Windows (Vista, 2003, XP, 2000), WinCE 5.0, Linux, and Unix - 15 KV ESD protection on the board
Availability: In stock
The CP-168U is a smart, 8-port universal PCI board designed for POS and ATM applications. It is a top choice of industrial automation engineers and system integrators, and supports many different operating systems, including Windows, Linux, and even Unix. In addition, each of the board's 8 RS-232 serial ports supports a super fast 921.6 Kbps baudrate. The CP-168U provides full modem control signals to ensure compatibility with a wide range of serial peripherals, and works with both 3.3V and 5V PCI buses, allowing the board to be installed in virtually any available PC server. - Over 700 Kbps data throughput for top performance - 921.6 Kbps maximum baudrate for super fast data transmission - 128-byte FIFO and on-chip H/W, S/W flow control - Choose from a wide range of connection cables and boxes - Compatible with 3.3/5V PCI and PCI-X - Drivers provided for Windows (Vista, 2003, XP, 2000), WinCE 5.0, Linux, and Unix - 15 KV ESD protection on the board
Specifications
| Certification | FCC, CE, RoHS |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Compatible operating systems | FreeBSD 4/5, Linux 2.4/2.6, QNX 6, SCO Open Server 5/6, UnixWare 7, Windows 2000/XP/2003/Vista/9X/ME/NT/CE 5.0/DOS |
| Mac compatibility | No |
| Power requirements | 5 V |
| Host interface | PCI |
| Serial ports quantity | 8 |
| Brand Name | Moxa |
| Warranty | 2 years |
