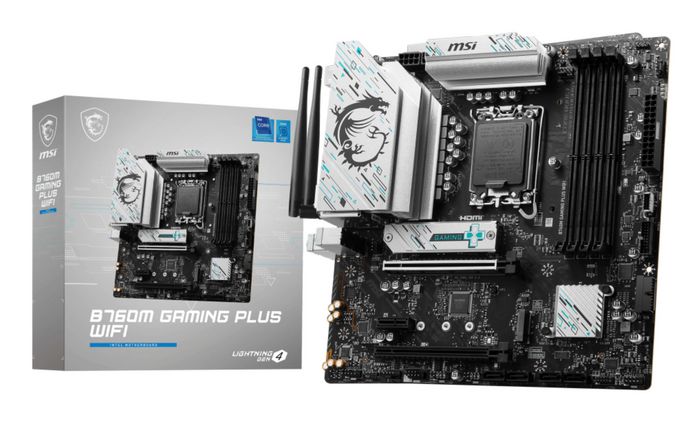

MSI Intel B760, 4x DDR5, 2x HDMI, 2x DisplayPort, 2x M.2, 4x SATA 6G, 2.5G LAN, Wi-Fi 6E, mATX
B760M GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want it all. LIGHTNING GEN 4 PCI-E Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s. REINFORCED, HEAVY SOLDERED CONNECTIONS Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
Availability: In stock
LIGHTNING GEN 4 PCI-E REINFORCED HEAVY SOLDERED CONNECTIONS B760M GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want it all. LIGHTNING GEN 4 PCI-E Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s. REINFORCED, HEAVY SOLDERED CONNECTIONS Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
Specifications
| ACPI version | 6.4 |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| System Management BIOS (SMBIOS) version | 3.5 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard chipset | Intel B760 |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Power source type | ATX |
| Windows operating systems supported | Windows 10, Windows 11 |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Number of SATA III connectors | 4 |
| RGB LED pin header | Yes |
| TPM connector | Yes |
| USB 2.0 connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 192 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Non-ECC | Yes |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 6800 MHz |
| Supported memory clock speeds | 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800 |
| Supported memory types | DDR5-SDRAM |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11ad, 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® Gold |
| Maximum number of SMP processors | 1 |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Supported processor sockets | LGA 1700 |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 2 |
| DVI-D ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| VGA (D-Sub) ports quantity | 0 |
| RAID levels | 0, 1, 10, 5 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| Brand Name | MSI |
| Warranty | 1 year |
