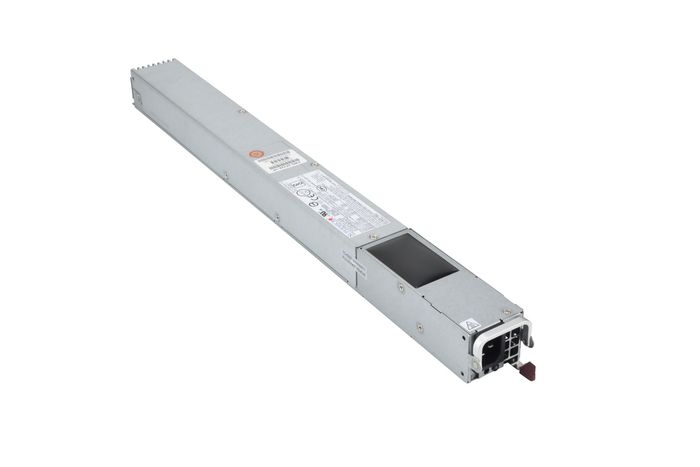

Supermicro 2200W, 100-240V, 50/60Hz, 14A, 1U, 480x40x45mm, Metallic
Supermicro 2200W 1U Redundant Power Supply (PWS-2K22A-1R) The Supermicro PWS-2K22A-1R is an 80 Plus Titanium power supply capable of supplying 2200W output power at 96% efficiency. Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages. Features a card edge connector for connection with the backplane of compatible Supermicro 1U systems. This power supply is designed to not only provide you reliable power to your Supermicro server but also protects it from over voltage, over current and short circuiting via protective circuitry embedded into the unit. Rest easy knowing your hardware will be up and running with a mean-time between failure (MTBF) of greater than 200,000 hours and an LED indicator to keep you informed on normal/abnormal conditions for your PSU. This power supply is redundant to safe-guard your system from power failure and allows for hot-swap replacement to eliminate system downtime. All materials conta
Availability: In stock
Supermicro 2200W 1U Redundant Power Supply (PWS-2K22A-1R) Supermicro 2200W 1U Redundant Power Supply (PWS-2K22A-1R) The Supermicro PWS-2K22A-1R is an 80 Plus Titanium power supply capable of supplying 2200W output power at 96% efficiency. Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages. Features a card edge connector for connection with the backplane of compatible Supermicro 1U systems. This power supply is designed to not only provide you reliable power to your Supermicro server but also protects it from over voltage, over current and short circuiting via protective circuitry embedded into the unit. Rest easy knowing your hardware will be up and running with a mean-time between failure (MTBF) of greater than 200,000 hours and an LED indicator to keep you informed on normal/abnormal conditions for your PSU. This power supply is redundant to safe-guard your system from power failure and allows for hot-swap replacement to eliminate system downtime. All materials contained comply with RoHS requirements and is certified by Supermicro.
Specifications
| Certification | REACH, UL60950-1/CSE 60950-1, EN60950-1, IEC60950-1, CB, CE, BSMI, CQC |
| Compliance certificates | RoHS |
| LED indicators | Yes |
| Product colour | Metallic |
| Operating relative humidity (H-H) | 20 - 90 % |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating altitude | 0 - 5000 m |
| 80 PLUS certification | 80 PLUS Titanium |
| Mean time between failures (MTBF) | 200000 h |
| Power supply unit (PSU) form factor | 1U |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Efficiency | 96 % |
| Hold time | 12 ms |
| Input current | 9.8 - 14 A |
| Max output current (+12V) | 174,17 A |
| Maximum input current (@220V) | 11 A |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Total power | 2200 W |
| Brand Name | Supermicro |
| Warranty | 1 year |
