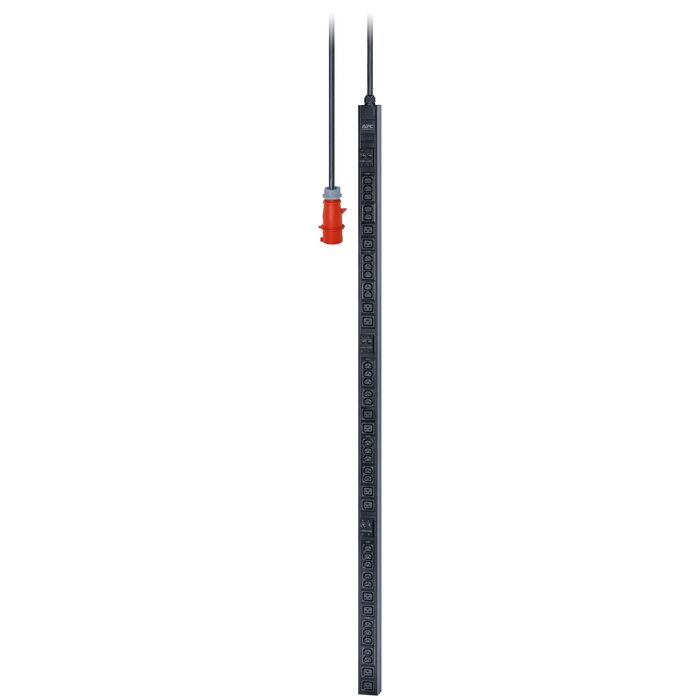

APC EPDU1232B, Zero U, 32A, 230V, 30x C13, 12x C19, 1794x62x44 mm, Black
Easy Basic PDU provide reliable rack power distribution units (PDU) that offer more than a power strip for server rack and network rack solutions. Resettable circuit breakers Enables a quick recovery from overload events. Toolless Rack Mounting Capabilities Server cases do not require additional tools to mount into NetShelter Enclosures, which allows the users to quickly and easily mount units in the rear of the enclosure. Zero U Rack Mounting Abilities Vertical mounting capabilities allow users to mount the units in a rack or enclosure without expending valuable rack space. Agility Rack-Mountable Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment. Wide range of input and output connections Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirement
Availability: In stock
Agility Cost Savings Easy Basic PDU provide reliable rack power distribution units (PDU) that offer more than a power strip for server rack and network rack solutions. Resettable circuit breakers Enables a quick recovery from overload events. Toolless Rack Mounting Capabilities Server cases do not require additional tools to mount into NetShelter Enclosures, which allows the users to quickly and easily mount units in the rear of the enclosure. Zero U Rack Mounting Abilities Vertical mounting capabilities allow users to mount the units in a rack or enclosure without expending valuable rack space. Agility Rack-Mountable Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment. Wide range of input and output connections Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip. Single input power source Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections. Cost Savings Low Cost Power Distribution Provides a number of outlets to bring power to rack equipment at an affordable price.
Specifications
| Mounting | Vertical |
| PDU types | Basic |
| Product colour | Black |
| Rack capacity | 0U |
| Type | Three-phase |
| Cable length | 2 m |
| Certification | CE, TUV |
| Non-operating altitude | 0 - 15000 m |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -25 - 65 °C |
| Manual | Yes |
| AC outlet types | C13 coupler, C19 coupler |
| AC outlets quantity | 42 AC outlet(s) |
| Power plug | IEC 60309 |
| AC input frequency | 50 - 60 Hz |
| Load capacity | 22080 VA |
| Maximum current | 32 A |
| Maximum input current per phase | 32 A |
| Maximum power | 22000 W |
| Nominal input voltage | 400 V |
| Nominal output voltage | 230 V |
| Brand Name | APC |
| Warranty | 1 year |
